Estimated Shipping End of April

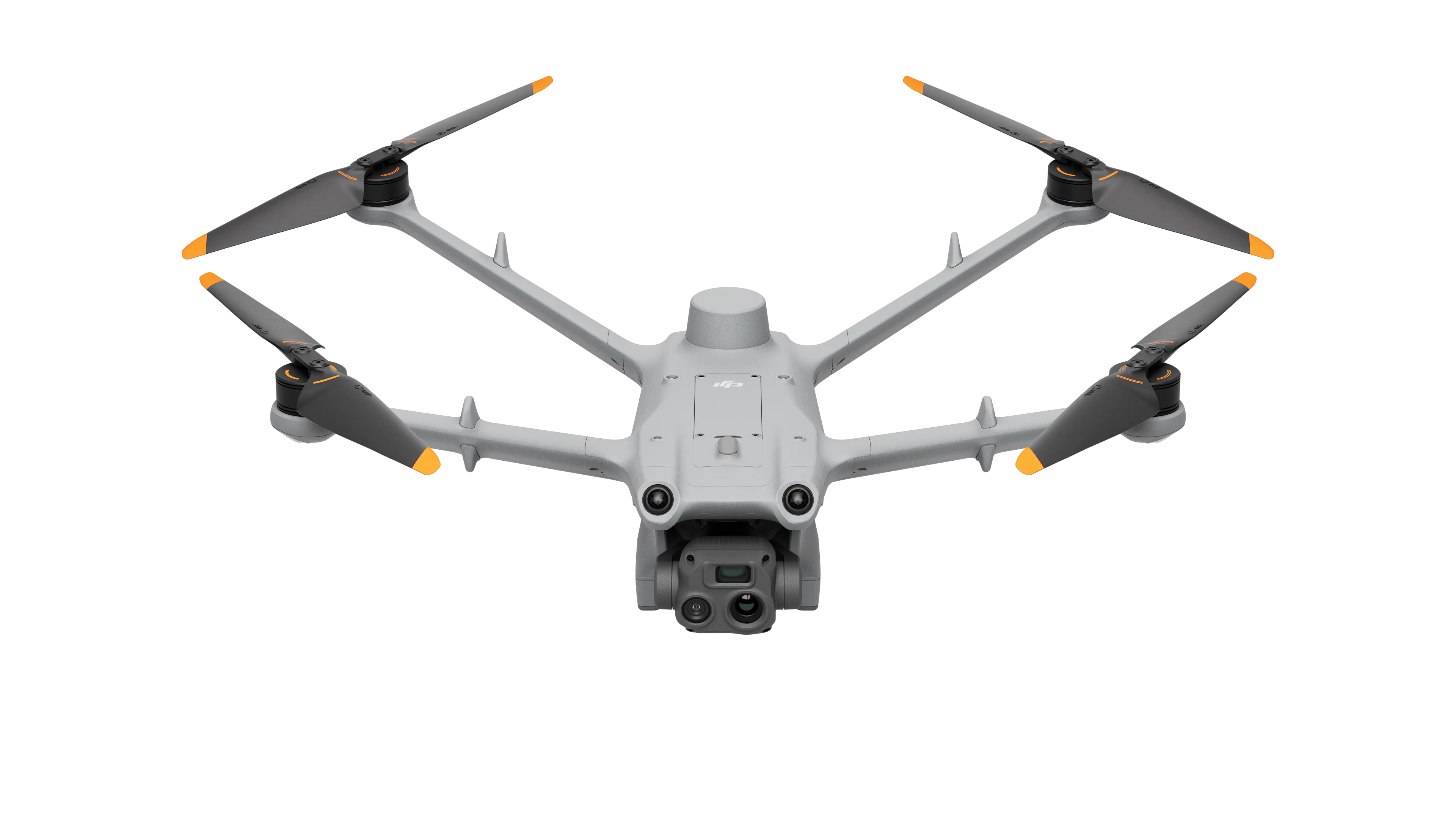

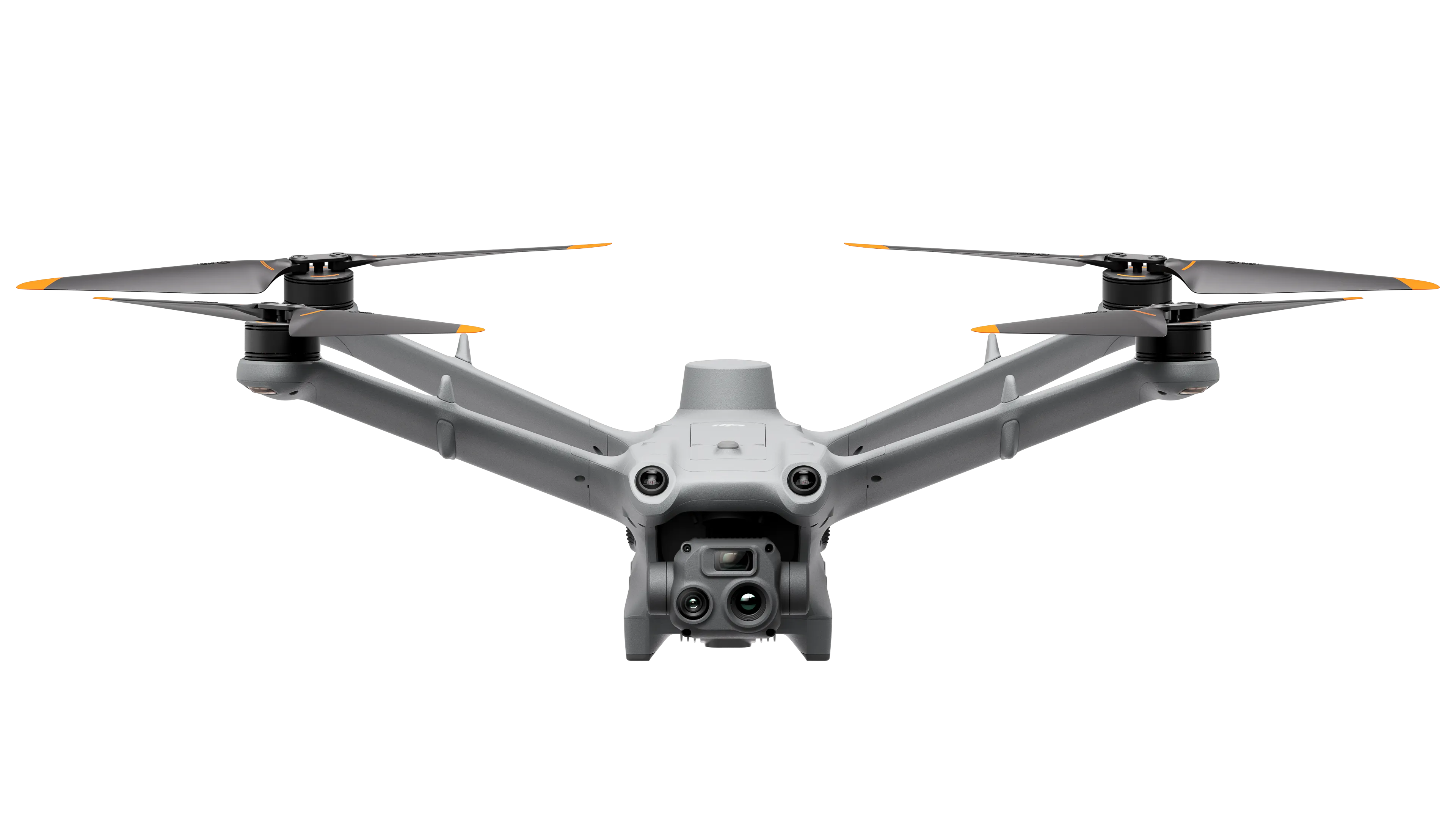

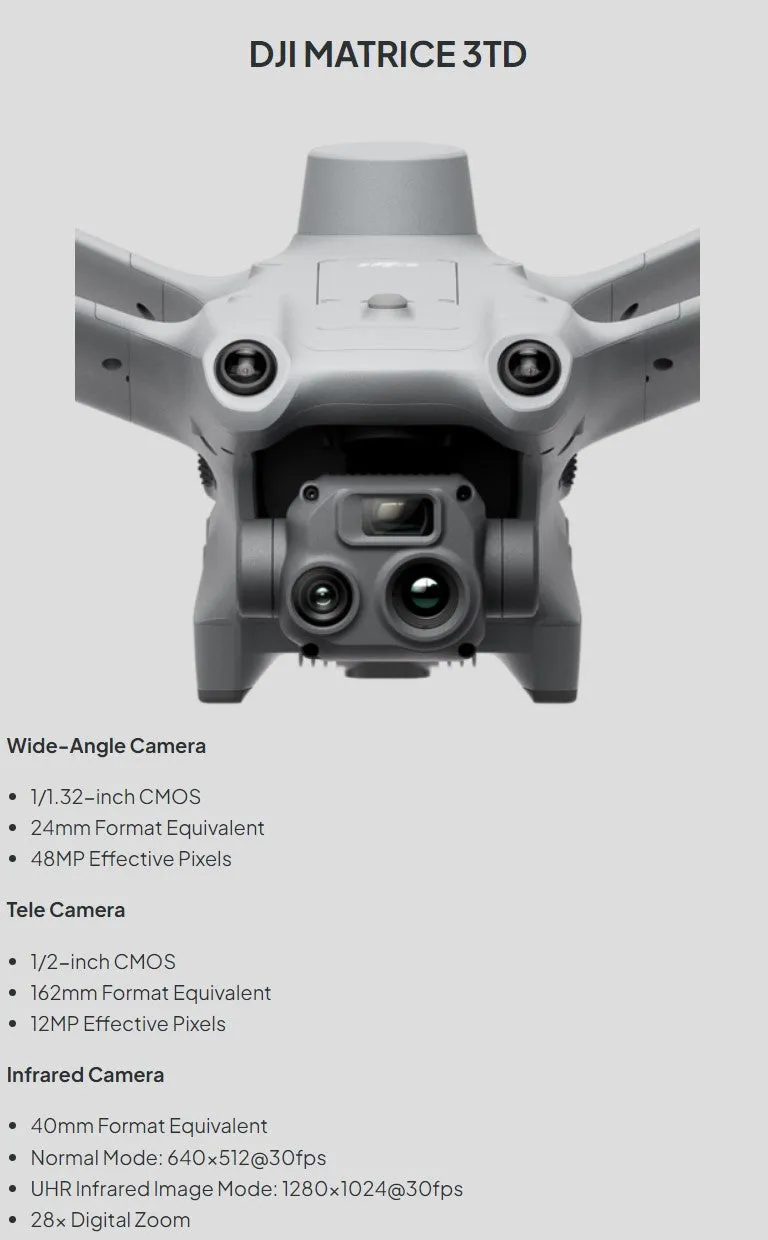

The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of high-standard operations.
- IP54
- 50 Mins
- 6-Directional
- Dustproof and Waterproof
- Max Flight Time
- Obstacle Sensing System
- 10 km
- 400
- Integrated RTK Module
- Max Effective Operating Radius
- Battery Cycles
- ±3cm Positioning Accuracy
STEADY OPERATION, UNCOMPROMISED EFFICIENCY
QUICK TAKEOFF
DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status.
QUICK CHARGING
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes for efficient powering for consecutive operations.
DUAL-CAMERA MONITORING
DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft's takeoff and landing.
CLOUD-BASED OPERATION, MAXIMUM CONTROL
CLOUD MAPPING
After the aircraft completes its flight task, DJI FlightHub 2 generates high-precision 3D models based on the collected flight data, authentically restoring the operating environment. These models can be annotated, measured, and downloaded.
FLIGHT ROUTE EDITOR
Utilizing high-precision 3D models, operators can conduct visual flight route editing from a first-person perspective and preview simulated imaging results. This facilitates intuitive and efficient operations and enhances flight route planning and accuracy.
AI SPOT-CHECK
Frame a specific area in the 3D model, and the aircraft will automatically compare the area to be captured with the framed area in subsequent automated operations. This actively adjusts the camera's angle to ensure accurate capture of the same area across multiple flights.
FLYTO TASKS
DJI FlightHub 2's FlyTo tasks utilize high-precision 3D models to automatically plan the optimal flight route. Before an urgent task, the operator only needs to click on the subject, and the aircraft will fly to the destination via an efficient and safe route.
LIVE FLIGHT CONTROLS
Based on DJI FlightHub 2 or a third-party cloud platform, even if DJI Dock 2 is deployed in a remote region, the operator can still control the flight and gimbal angle via keyboard and mouse.
OBSTACLE BYPASS
When performing automatic flight tasks, the aircraft utilizes omnidirectional obstacle sensing and automatic obstacle bypass functions to enhance the success rate of flight tasks.
