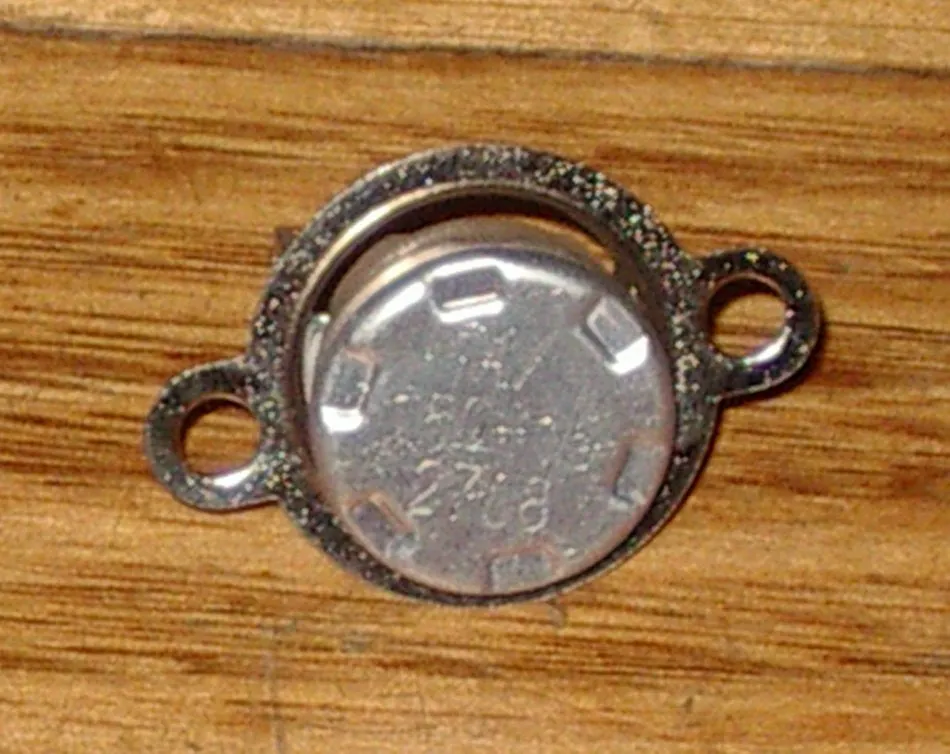

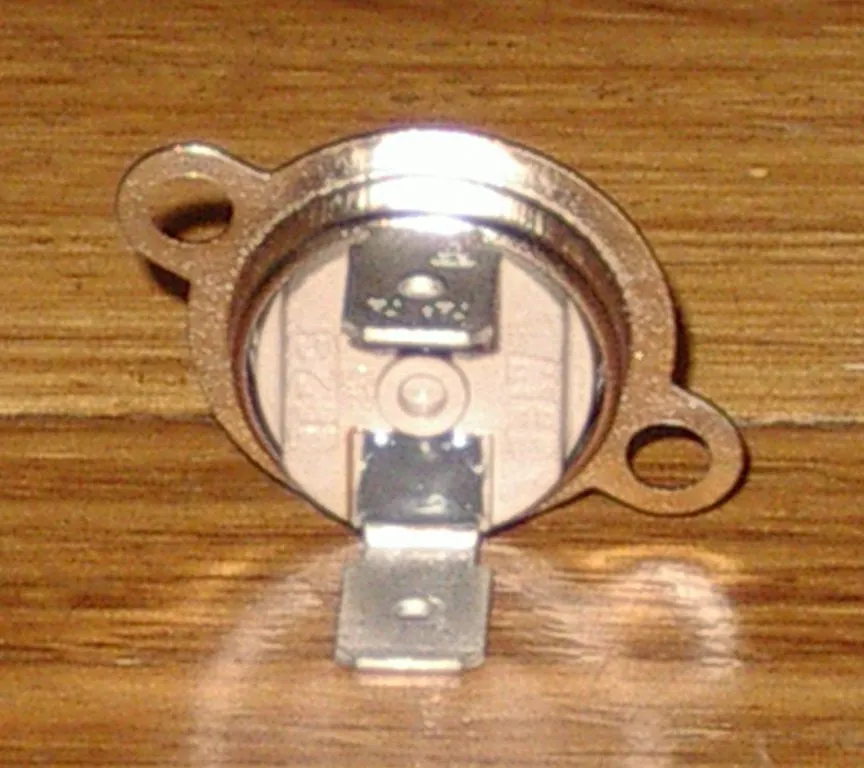

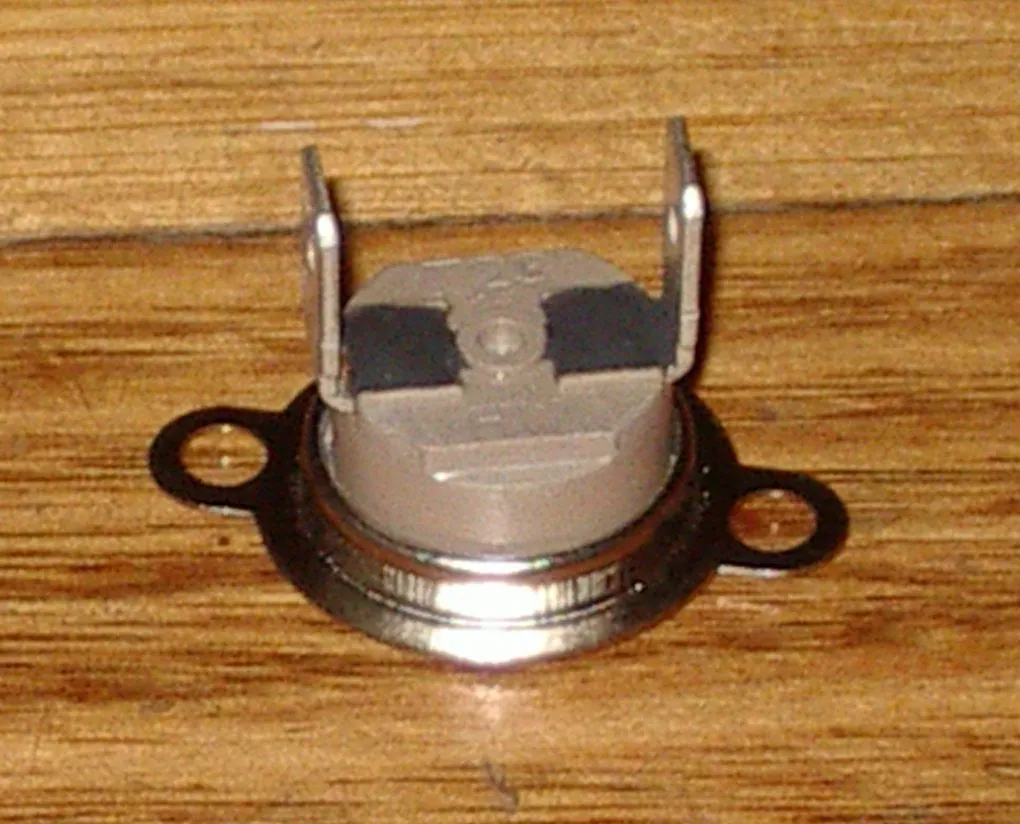

Multicomp 150°C Normally Closed Thermal Cutout.

Part No. T23A150BSR2-15.

Thermal cutout as used in many ovens as an over temperature safety thermostat.

Dimensions of body of cutout - diameter 14.5mm, height 9.6mm. Mounting hole spacing - 24mm.

Fitted with two 6.4mm spade terminals. Thermoplastic body.

Maximum ratings - 15Ampere, 125Volt AC, 10Ampere, 250VAC.

Cutout temperature - 150 degrees celcius, Cutin temperature - 135 degrees celcius.

Cutout is normally closed at room temperature and opens when the rated temperature is reached. It resets to closed when the temperature drops below the rated cut-in temperature.

Datasheet can be viewed
