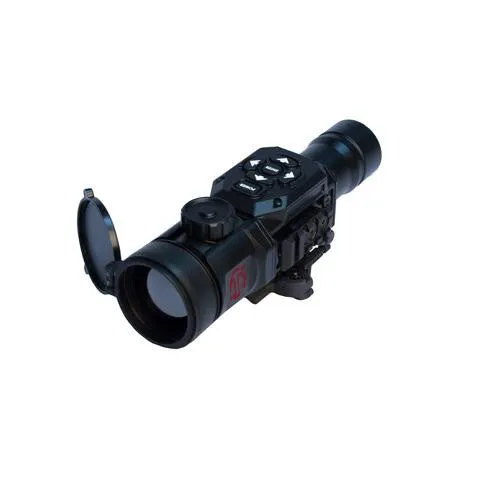

Representing the latest advancement in Thermal Imaging Technology, the ATN TICO-Series gives your daytime scope Thermal Imaging capability in a matter of seconds. The ATN TICO-Series mounts in front of a daytime scope to enable nighttime operation. No shift of impact, no need to rezero nor change of eye relief occurs. The ATN TICO-Series uses advanced thermal technology for outstanding resolution and performance. Precision optical alignment is essential for any front sight system to work properly. Therefor every ATN TICO-Series is individually tested and aligned oto the highest tolerances to provide perfect alignment.
Features:
- Easily changes daytime scope to Thermal imaging - Mounts in front of daytime scope, no re-zeroing required - Lightweight and rugged - Comes with Quick release mount - Video output - Resistance to all severe operating conditions
Specifications:
- Sensor(microbolometer): 640x480 - Frame rate: 60 Hz - Material: VoX - Image Size (output resolution): 800x600 px - Video output: Digital NTSC / PAL - Display Color: OLED matrix, SVGA 800x600 - Thermal Sensitivity: 50 mK - Spectral Response: 7-14 m - Field of View (H x V): 9 x 7 - Optical Magnification: 1x - Pixel Size: 17 m - Distance of the human detection(w/o zoom): 1100 m - Distance of the human recognition(w/o zoom): 400 m - Distance of the human Identification(w/o zoom): 225 m - Distance of the vehicle detection(w/o zoom): 2425 m - Distance of the vehicle recognition(w/o zoom): 875 m - Distance of the vehicle Identification(w/o zoom): 525 m - Contrast adjustment: Manual - Polarity control: White hot / Black hot / Multiple Color Modes - Start up time: 3 s - Waterproof: Waterproof / Dustproof - Battery type: 2 x CR123A - Battery Life: 4 h - Mounting bracket: MIL-STD 1913 Picatinny (Quick Detach) - Video output: Yes - Low Battery Indicator: Yes - Iconology: Quick access via Icon driven feature controls - Housing: Aircraft Aluminum 6061 T6 w/hard anodized coating - Objective lens: 50mm, full MIL SPEC, with DLC coating - Dimensions (with mount): 189 x 69 x 65mm/7.45 x 2.7 x 2,56" - Weight: 0.64 kg / 1.45 lbs - Warranty: 1 year
