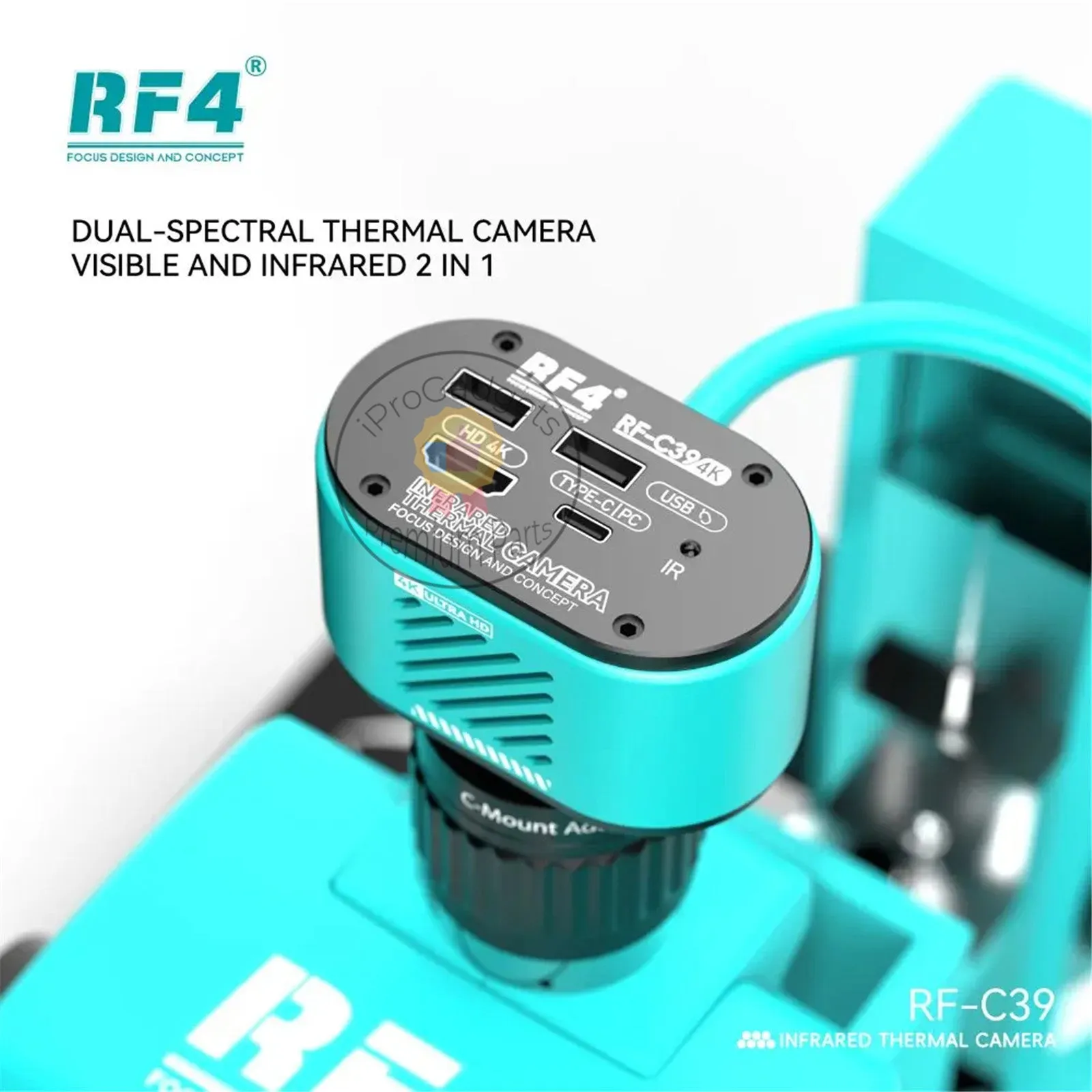

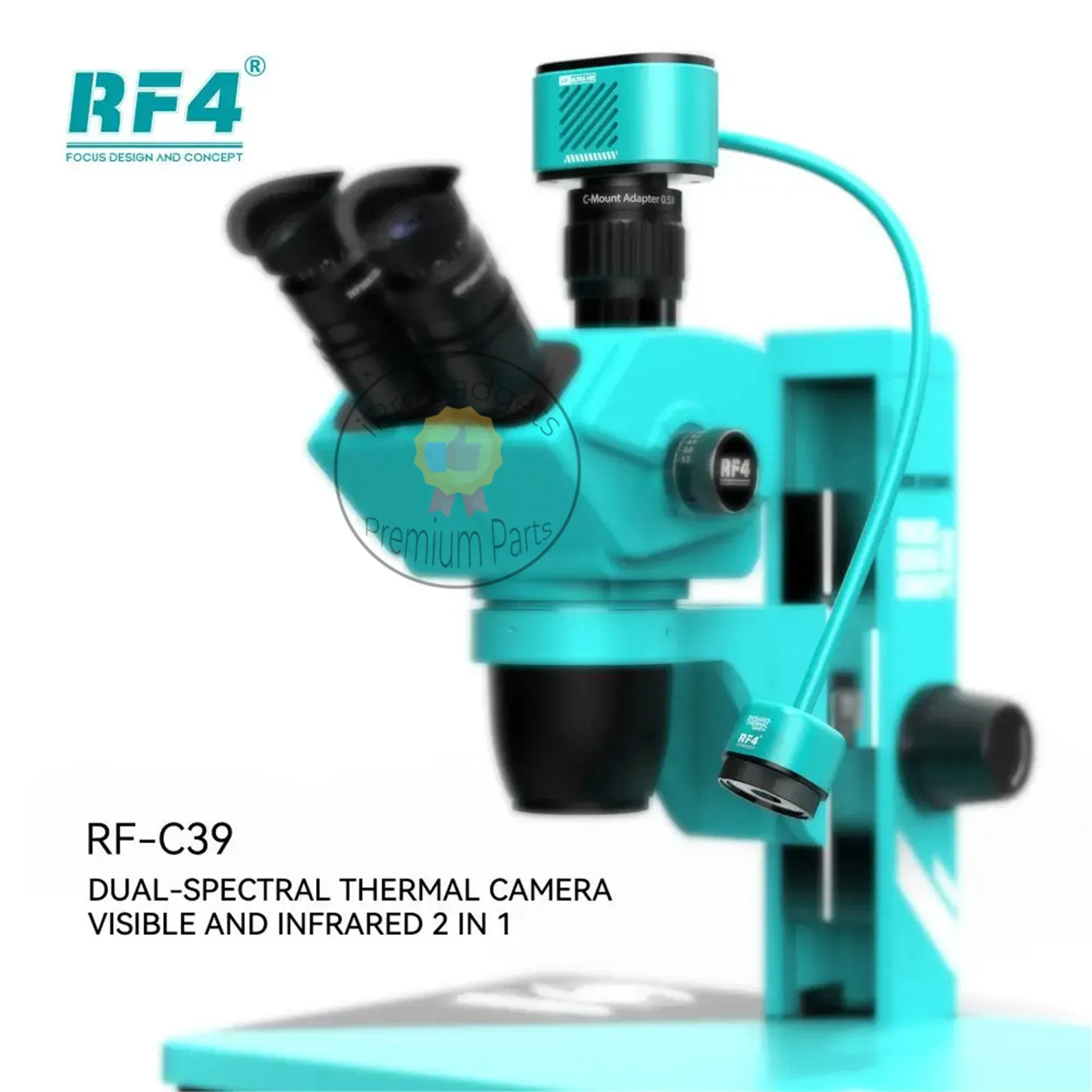

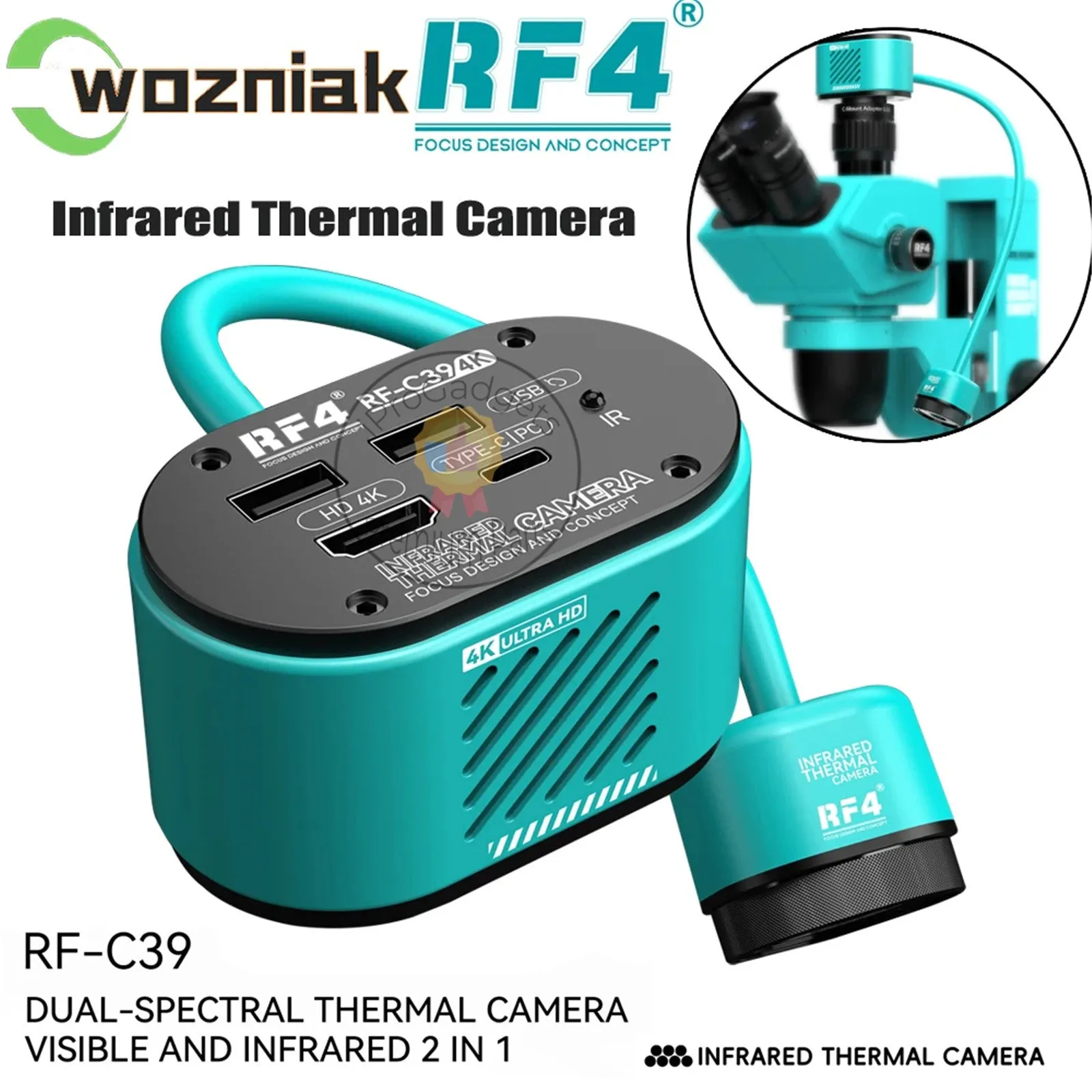

iProGadgets Repair Tools RF4 RF-C39 Infrared Dual-Spectral Thermal Camera Short Circuit Tester 4K Camera for Microscope PCB Board Fault Repair Tools
Features:Adopt 8.29 million pixel SONY CMOS image sensor
Adopt 1/2.8 inch image sensor
HDMI 3840*2160 30 frames /1080P 60 frames image output
USB2.0 drive free output 3840*2160 30 frame image output
Support photo, video, JPG format
Support manual/automatic exposure, brightness can be adjusted
Support manual/automatic white balance, red, green, blue adjustable
Provide 8 lines, line color, thickness,position can be adjusted
Provide center cross line display/close
Support U disk storage, mouse operation
The picture is clearer without shaking
Support Chinese, English, Traditional Chinese, Spanish, menu language (default English)
Support shutdown Settings parameter saving

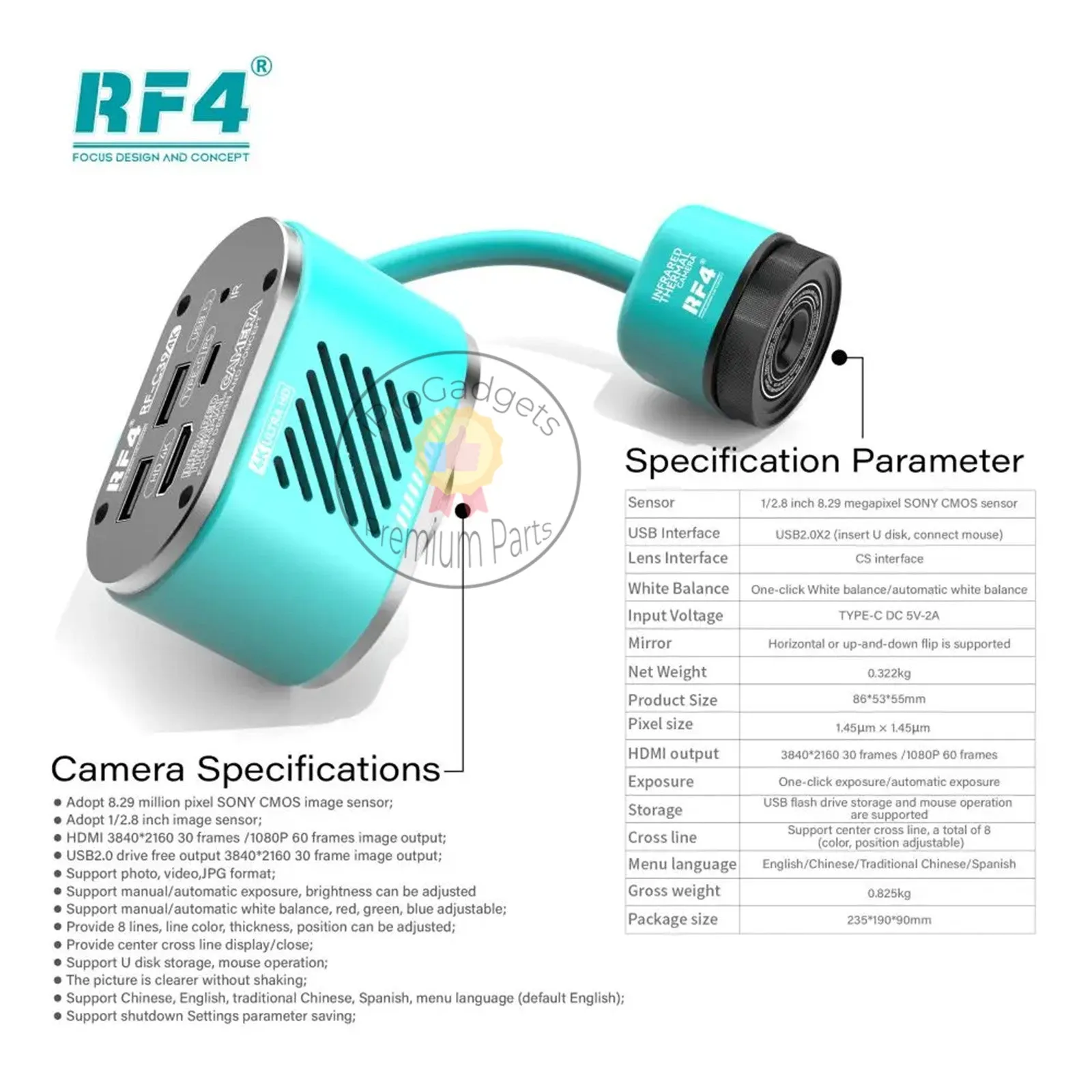

Specification:
Sensor: 1/2.8 inch 8.29 megapixel SONY CMOS sensor
USB Interface: USB2.0*2 (insert U disk,connect mouse)
Lens Interface: CS interface
White Balance: One-click White balance/automatic white balance
Input Voltage: Type-C DC 5V-2A
Mirror: Horizontal or up-and-down flip is supported
Net Weight: 0.322kg
Product Size: 86*53*55mm
Pixel size: 1.45μm*1.45μm
HDMI output: 3840*2160 30 frames /1080P 60 frames
Exposure: One-click exposure/automatic exposure
Storage: USB flash drive storage and mouse operation are supported
Cross line: Support center cross line, a total of 8 (color, position adjustable)
Menu language: English/Chinese/Traditional Chinese/Spanish

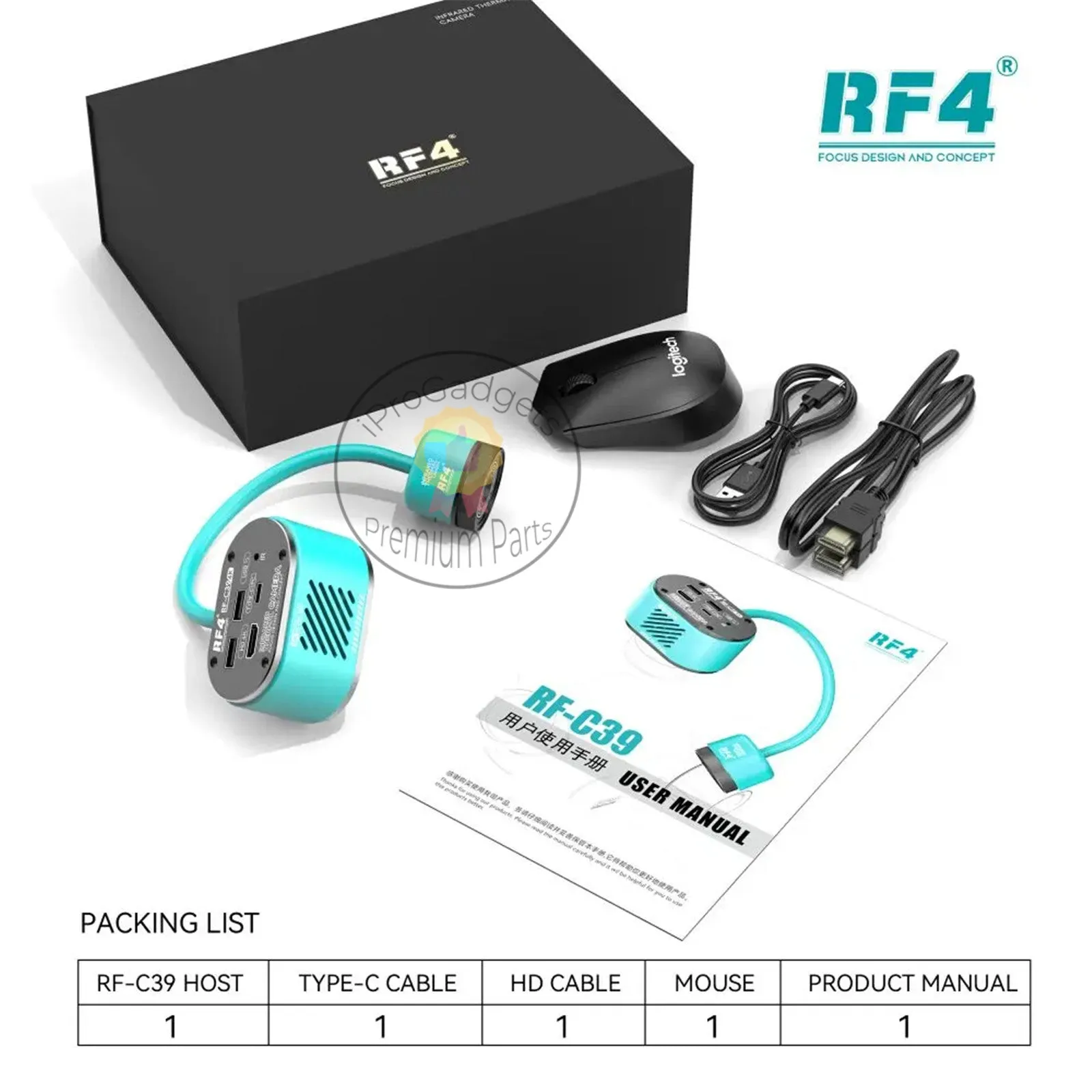

Package includes:
1 x Thermal Camera
