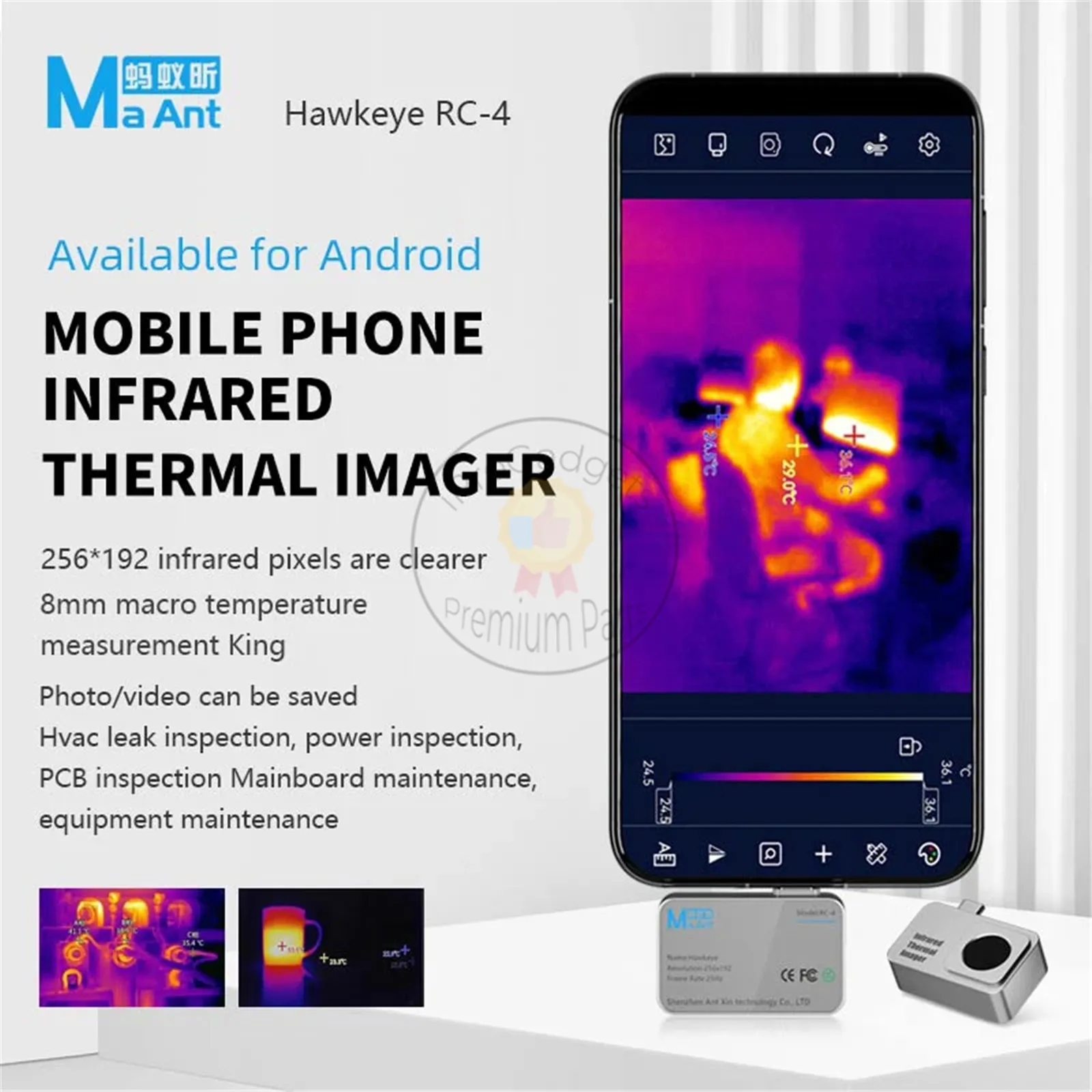

iProGadgets Repair Tools MaAnt Hawk Eye RC-4 Infrared Thermal Imager for Mobile Phone Repair Android Multifunctional Motherboard Repair Tool

Specification:

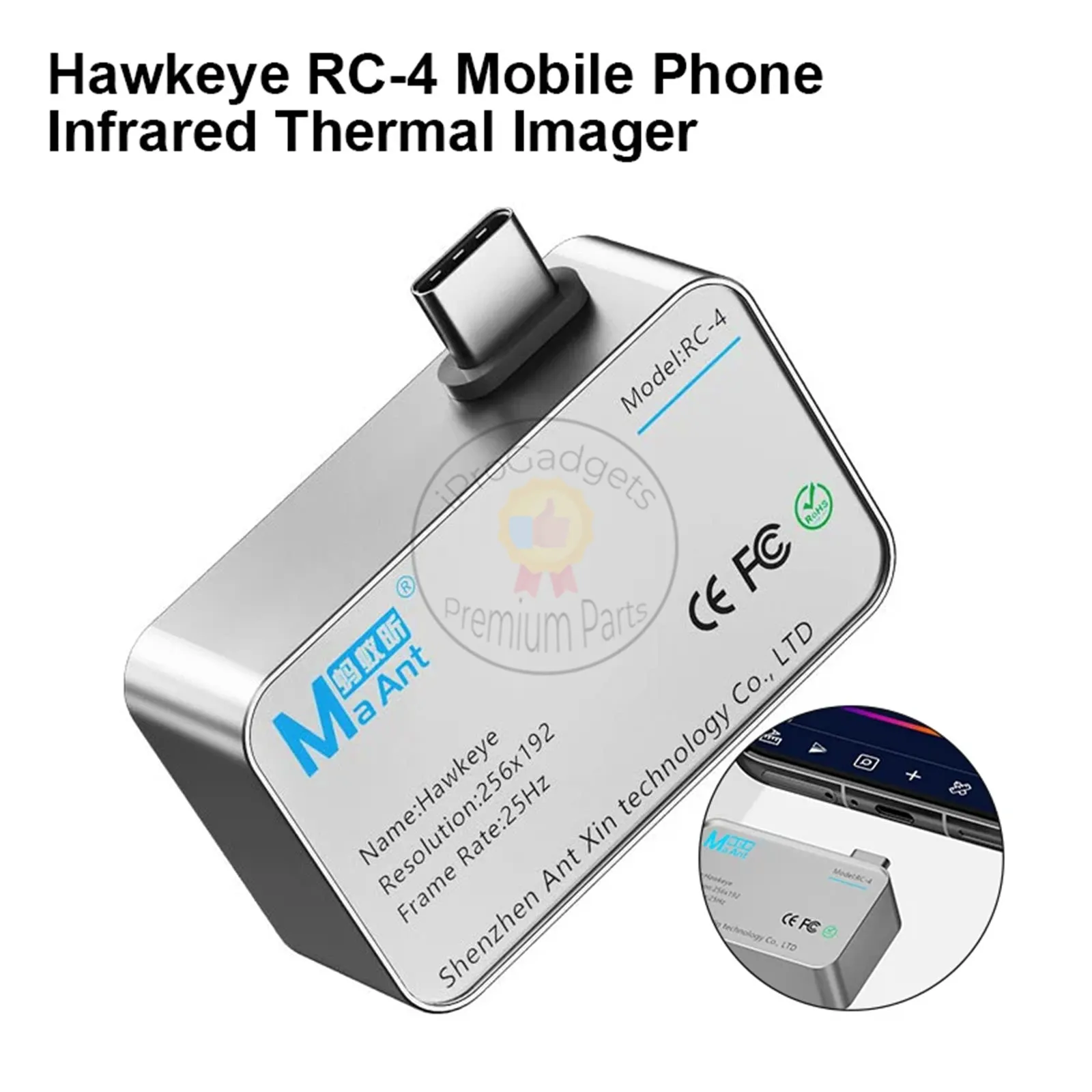

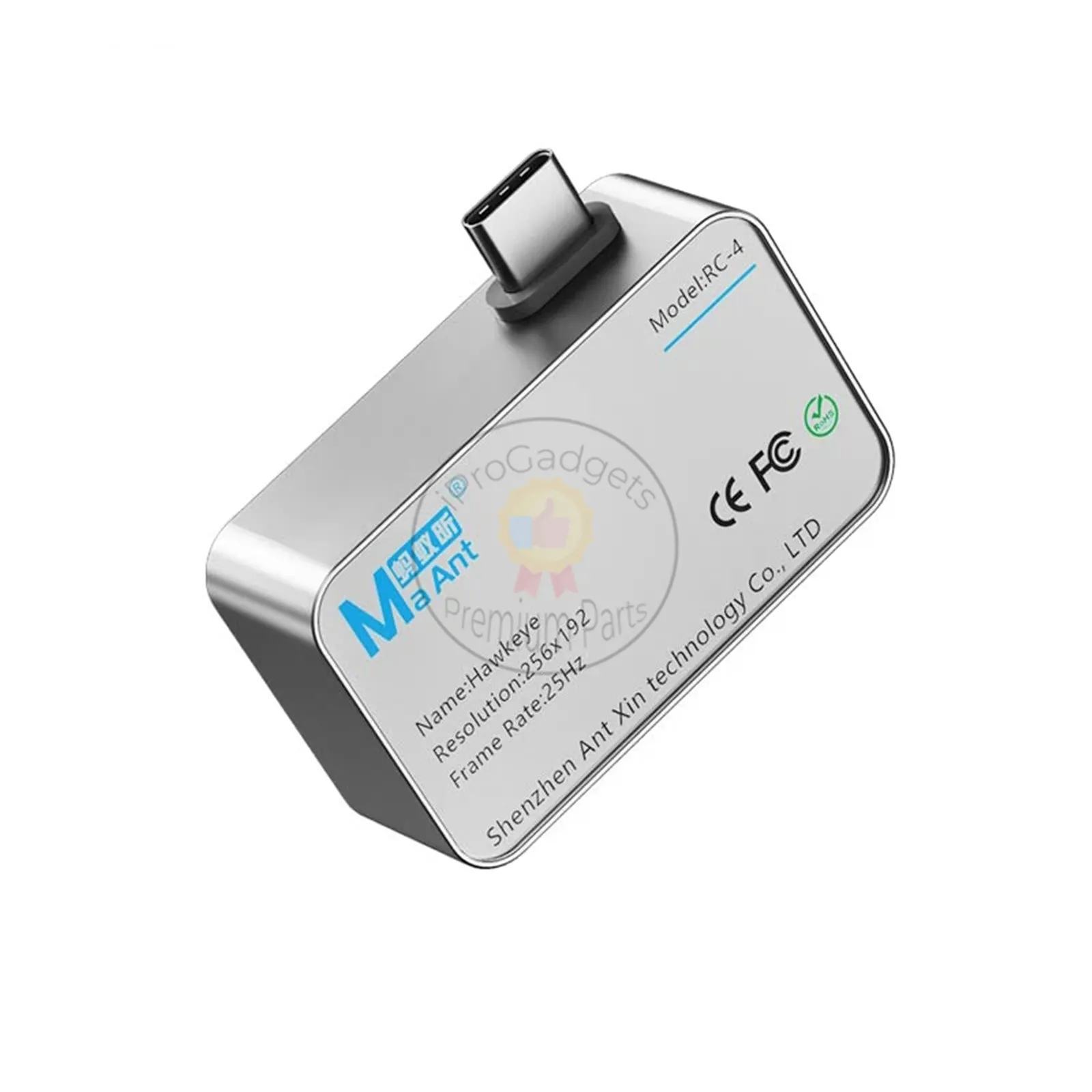

Model: MaAnt Hawkeye RC-4 thermal imaging camera.
Resolution: 256*192.
Operating wavelength: 8~14 μm.
Frame rate: 25Hz.
NETD: <50mk@25°C.
FOV: 56° x 42°.
Lens: 3.2mm.
Temperature range: -15°C~600°C.
Temperature measurement accuracy: ±2°C or ±2%.
Temperature measurement: Maximum, minimum, center point and zone support temperature measurement.
Palette pattern: lron red, black heat, white heat, rainbow, blue heat, red heat.
Language: Chinese, English, Russian, German, Italian, Portuguese, Japanese, French, Spanish, Finnish, Polish, Korean.
Operating temperature: -10°C~75°C.
Storage temperature: -45°C~85°C.
Waterproof type: IP54.
Product size: 40mmx25mmx14mm.
Package size: 111mmx79mmx53mm.

Product weight: 23g.

Gross product weight: 162g.
